Rotary RangeJSEF
Jetstar Rotary End Ring Fixing Machine
•Easy-to-use & very short fixing time •Robust Steel Structure •Instant Heating Infrared Lamp •Automatic Time Control •Enhances the Life of Screen & End Rings
- Jetstar introduces an easy-to-use Rotary Screen End Ring Fixing Machine compatible with all kinds of Rotary End Rings. The machine uses a series of linear bearings running on precision-ground guide shaft mechanisms mounted on a rugged solid structure.

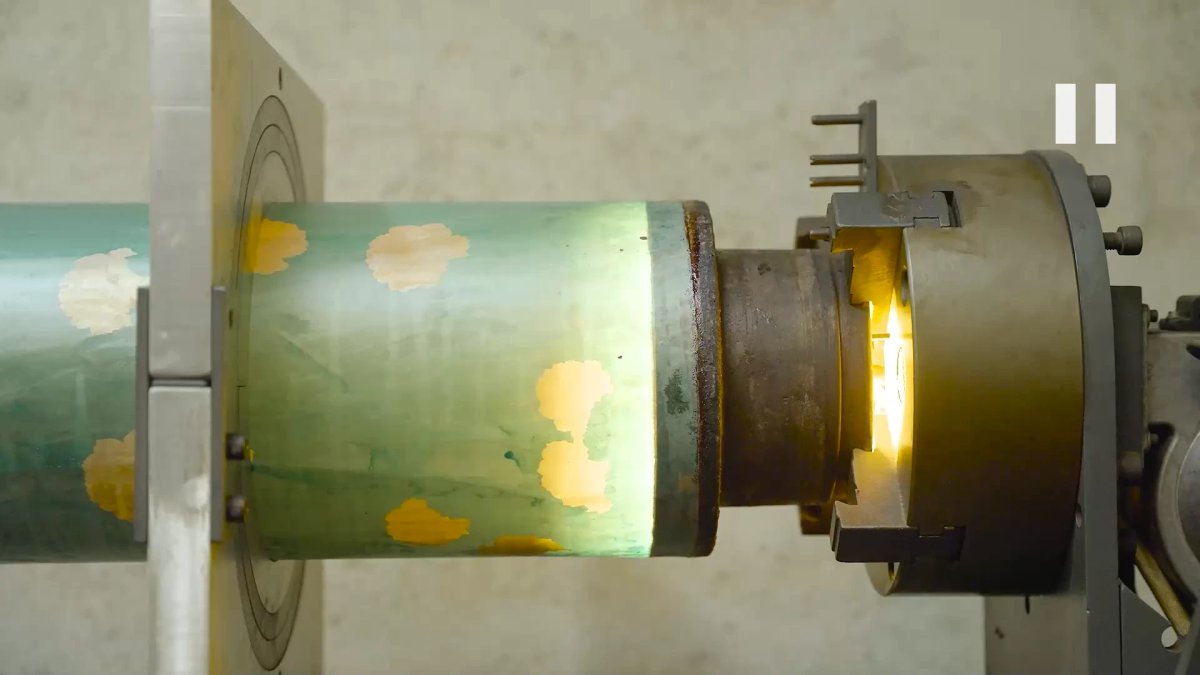

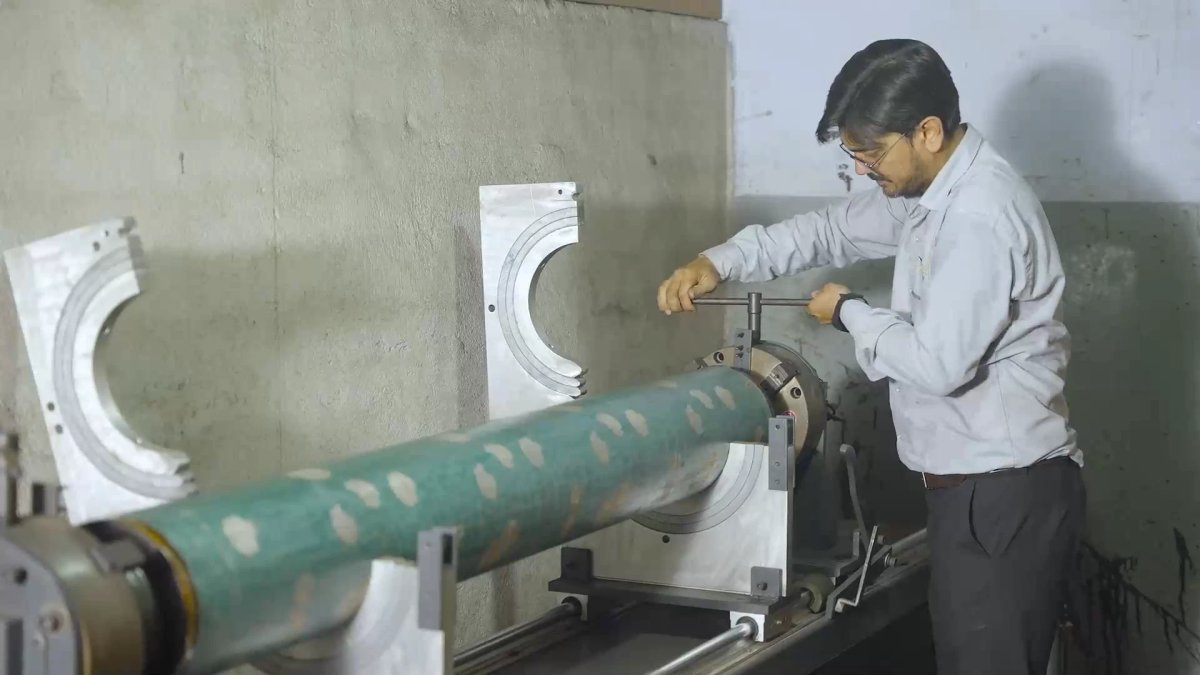

- Two self-centred 4-jaw chucks firmly hold aluminium end rings while two middle-section base frames provide support to the rotary screen during end ring insertion.

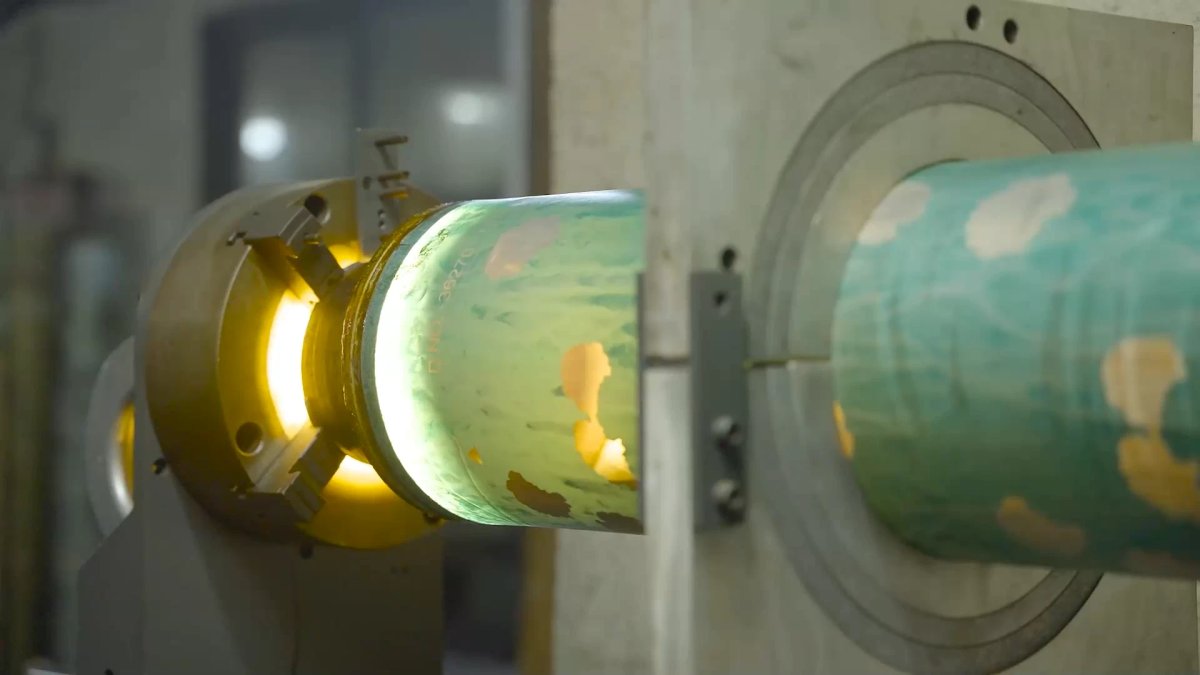

- High-energy instant-heating Infrared Lamps are used in conjunction with a hot air blower, ensuring fast and perfect fixing of the end ring with the screen.
- Key benefits: Easy to use, robust steel structure, instant heating infrared lamp, automatic time control, and extended life of both screens and end rings.
24×7 Toll-Free Support1800-843-9969
Technical Specifications
| Parameter | Specification |
|---|---|
| Dimensions | |
| Standard Screen Length | 2200 mm (variants: 1450mm–3500 mm) |
| Repeats Supported | 640mm, 820mm, 914mm, 1018 mm |
| Machine Dimensions | 3500mm × 400mm × 1200mm (approx.) |
| Weight | ~500 kg |
| Electrical | |
| Power | 7 kW |
| Heating | |
| Heating System | High-Energy Infrared Lamps + Hot Air Blower |
| Time Control | Automatic |
| Compatibility | |
| End Ring Types | All kinds of Rotary End Rings |
* Specifications subject to change without notice. Contact us for the latest technical documentation.
