Rotary RangeJSBRR

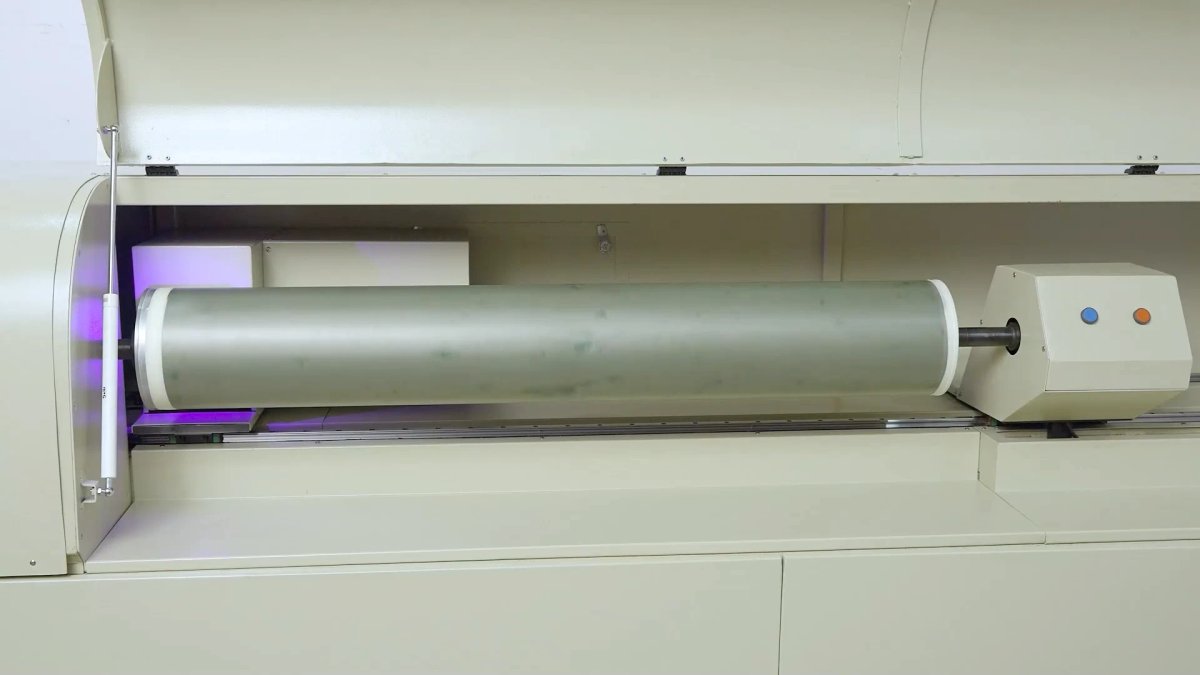

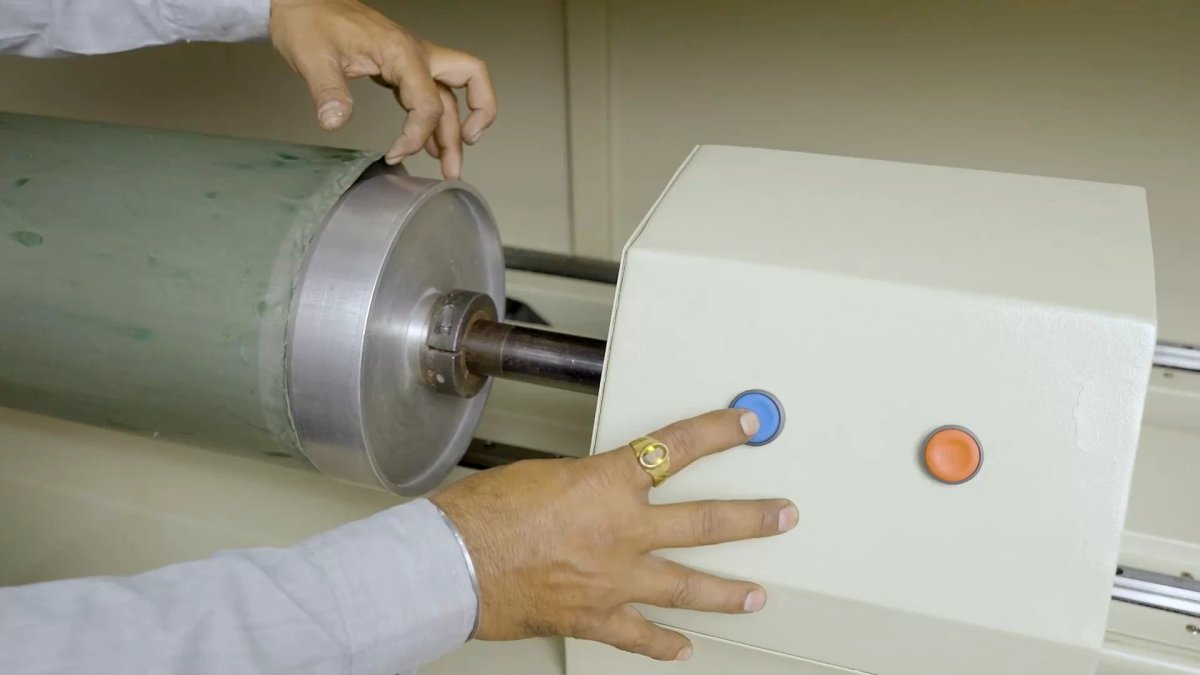

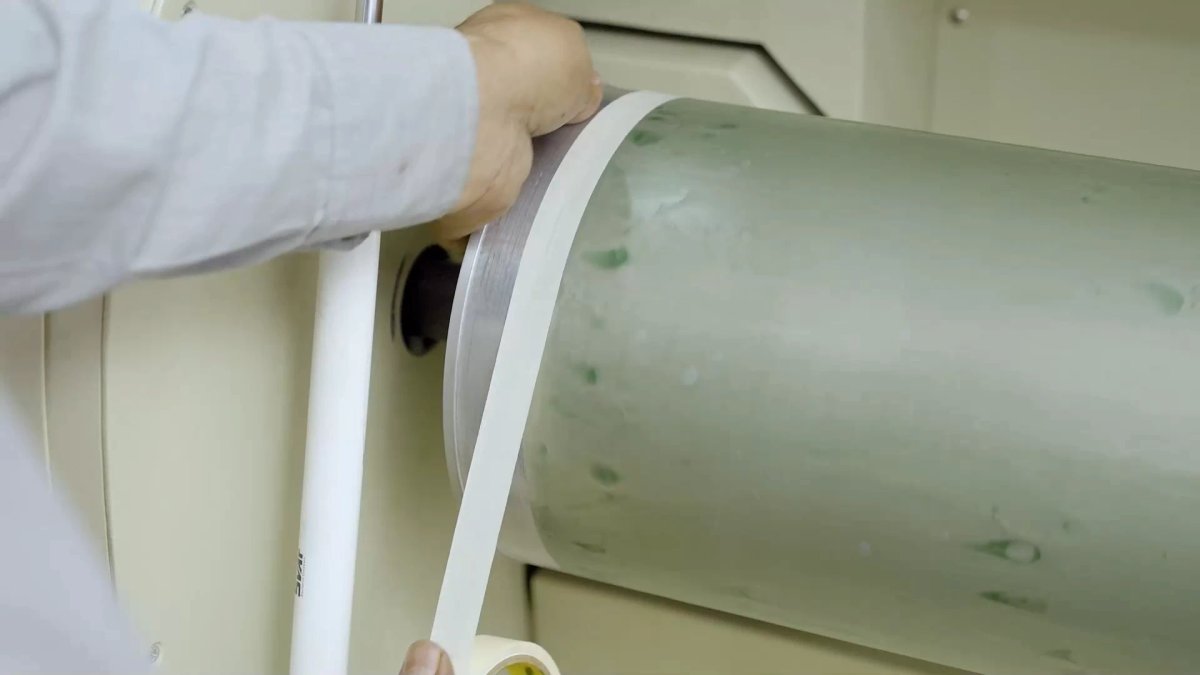

Jetstar Blue Ray Rotary Screen Engraver

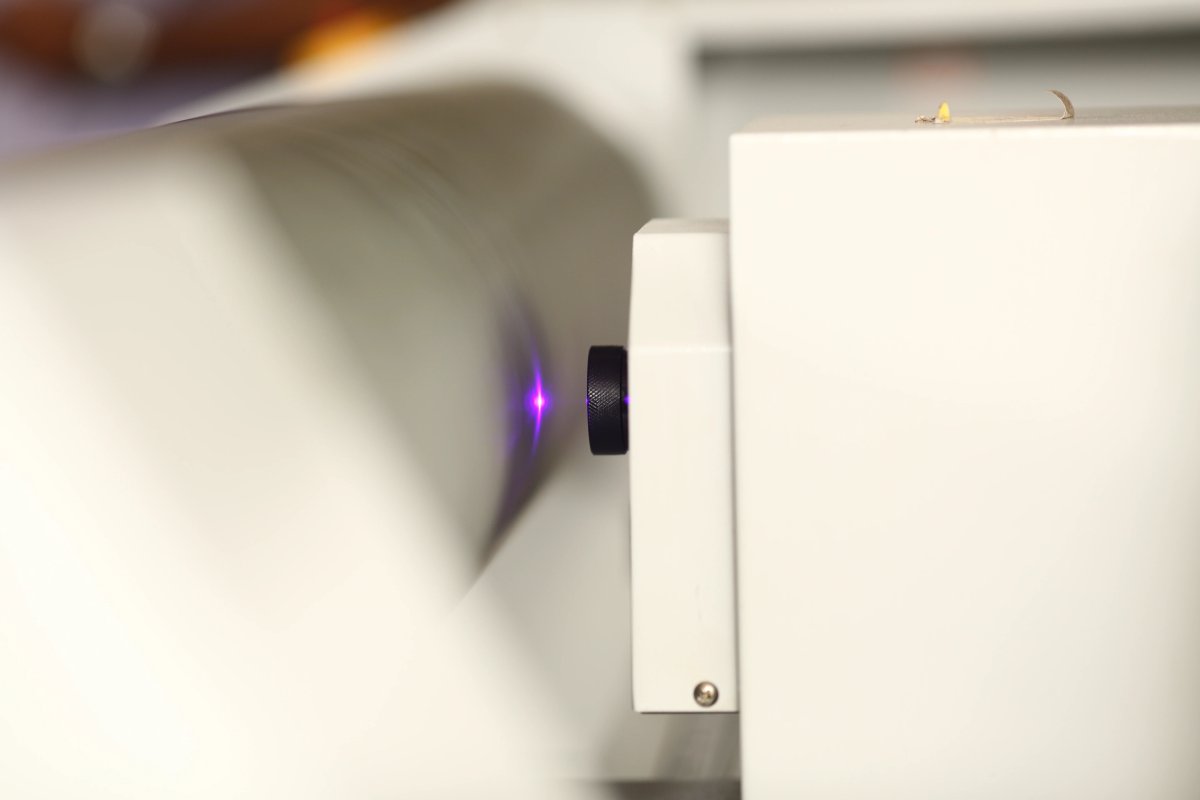

Breakthrough Computer to Screen (CTS) system with 16/24/32/48/64 channel fibre-coupled 405nm blue laser diodes for high-speed, high-precision rotary screen engraving.
- Jetstar introduces a breakthrough in Computer to Screen systems with the launch of the Blue Ray Laser Rotary Engraver. A fibre-coupled array of 16/24/32/48/64 blue laser diodes is used for engraving images on the screen accurately. The total cost of ownership per engraved screen reduces considerably as no consumables are involved.
- Based on the accurate focusing and stability of the UV Laser System, Jetstar's Blue Ray Rotary Engraver can realise high-speed and high-precision screen making at a low cost. The automatic light intensity calibration and temperature control ensure consistent output across thousands of screens.
24×7 Toll-Free Support1800-843-9969
Product Video
Technical Specifications
| Parameter | Specification |
|---|---|
| Imaging | |
| Imaging System | 16/24/32/48/64 channel Discrete 405nm Laser Diodes |
| Print Resolution | 360 / 720 dpi |
| Engraving Speed | 5–8 min/m (640mm repeat) |
| Registration Accuracy | ±0.02 mm |
| Emulsion | UV sensitisation standard |
| Image Formats | BMP, TIF |
| Dimensions | |
| Printing Length | 2200 mm / 3500 mm |
| Screen Circumference | 640, 820, 914, 1018 mm |
| Connectivity | |
| Interface | USB 2.0 |
| Software | PC-based RIP Software |
| Electrical | |
| Power Supply | 220V 50Hz ±2kW |
| Environment | |
| Operating Temperature | 21–25 °C |
| Humidity | 40–70% non-condensing |
* Specifications subject to change without notice. Contact us for the latest technical documentation.
