Rotary RangeJSA-POLY

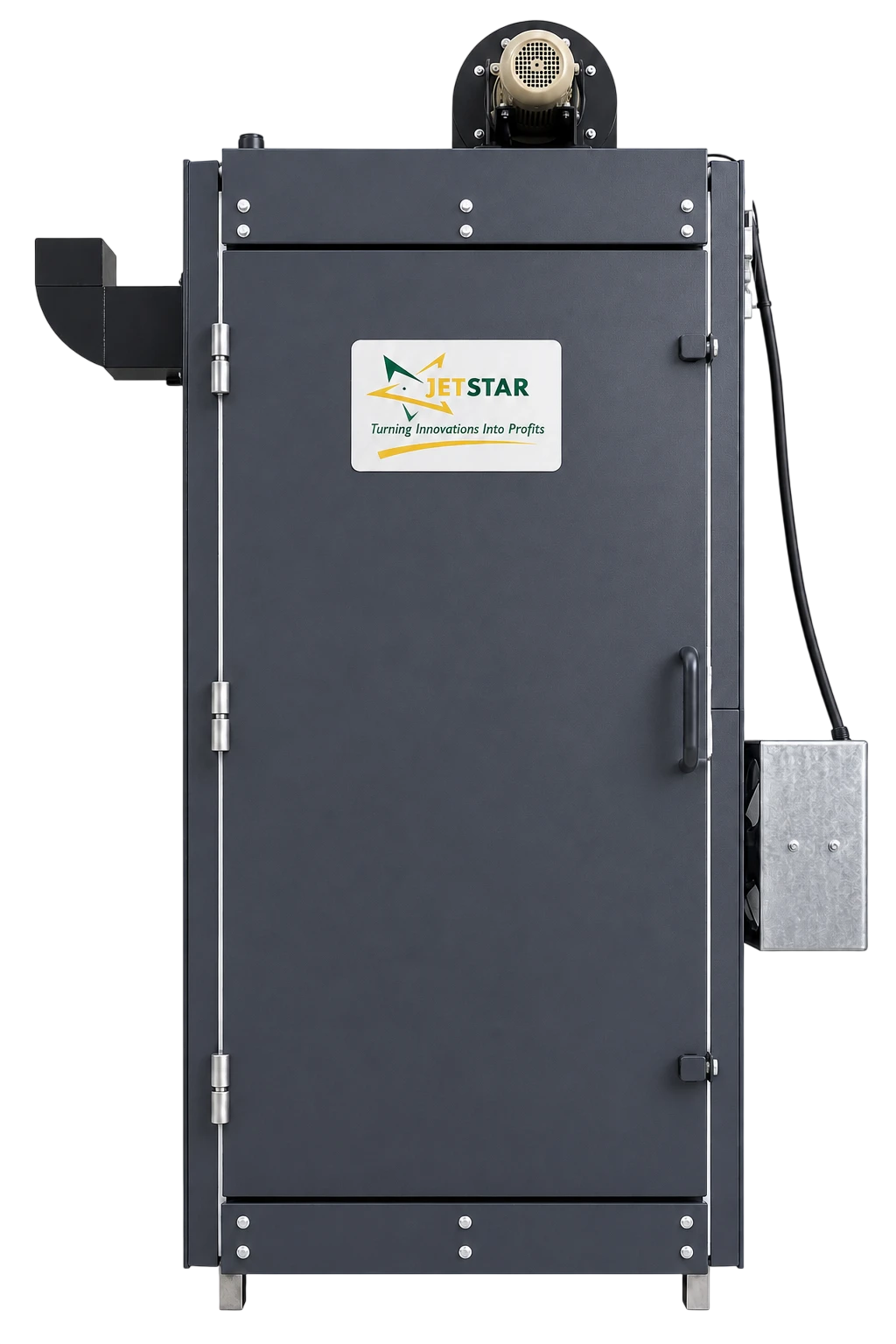

Jetstar Polymeriser
Jetstar Rotary Screen Dryer Cum Polymerizer ensures perfect screen rounding, uniform curing, and precise temperature control for extended screen life, energy efficiency, and reliable high-speed printing performance.
- The Jetstar Polymeriser ensures perfect curing and hardening of screen printing emulsions in a high-temperature oven, providing exceptional durability for long uninterrupted print runs.
- Automatic rotary screen drying and polymerizing system for precise and uniform curing.
- Ensures perfect screen rounding for accurate printing registration.
- Provides uniform temperature distribution from top to bottom.
- Advanced digital control for accurate temperature management.
- Supports electric, gas, thermic oil, and combined heating systems.
- Low energy consumption for cost-effective operation.
- Heavy-duty MS body construction for durability and stability.
- Compatible with 640, 820, 914 and 1018 mm screen repeats.
- Enhances screen durability and ensures longer screen life.
- Prevents registration issues during high-speed printing.
- Designed for long, continuous printing runs.
- - Available models: JSRSDY-2200 and JSRSDY-3200.
24×7 Toll-Free Support1800-843-9969
Technical Specifications
| Parameter | Specification |
|---|---|
| Length of Screen | Any Minimum size or Up to 3200 mm |
| Heater Types | a)Electric, b)Electric + Gas c)Gas d)Electric + Thermic Oil d)Thermic Oil |
| Electric Power | 20KW, 3 PHASE Motor 1.5 KW Scope of Customer Supply: a) 4core 10 Sq.mm Copper Cable b) MCB 4pole 63amp |
| Gas Dryer | Burner: 01 nos 70K Cal Consumption: 2kg/hr Gas Pressure: 500mm WC Scope of Customer Supply: • Power Load: 2 kw • Cable: 4 Core 2.5 Sq.mm Copper Cable • MCB: 4pole 16amp |
| Oil Dryer | 90 tube oil radiator Scope of Customer Supply: Forward oil line 2 inch • Oil Valve • Thermic Oil (220 Degree Centigrade) • Oil Pressure 1.5kg/cm² • Motor: 2kw Power requirement |
| Dimensions | For 1980 mm Screen Height: 3400 mm , Width: 1900 mm ,Depth: 2500 mm (Including Door Opening) |
| Dimensions | For 3200 mm Screen Height: 4600 mm ,Width: 1900 mm ,Depth : 2500 mm (Including Door Opening) |
| Accommodation | 640 mm - 12 nos ,820 mm - 08 nos, 914 mm - 06 nos |
| Available Models | JSRSDY-2200, JSRSDY-3200 |
* Specifications subject to change without notice. Contact us for the latest technical documentation.
