Flatbed RangeJSP

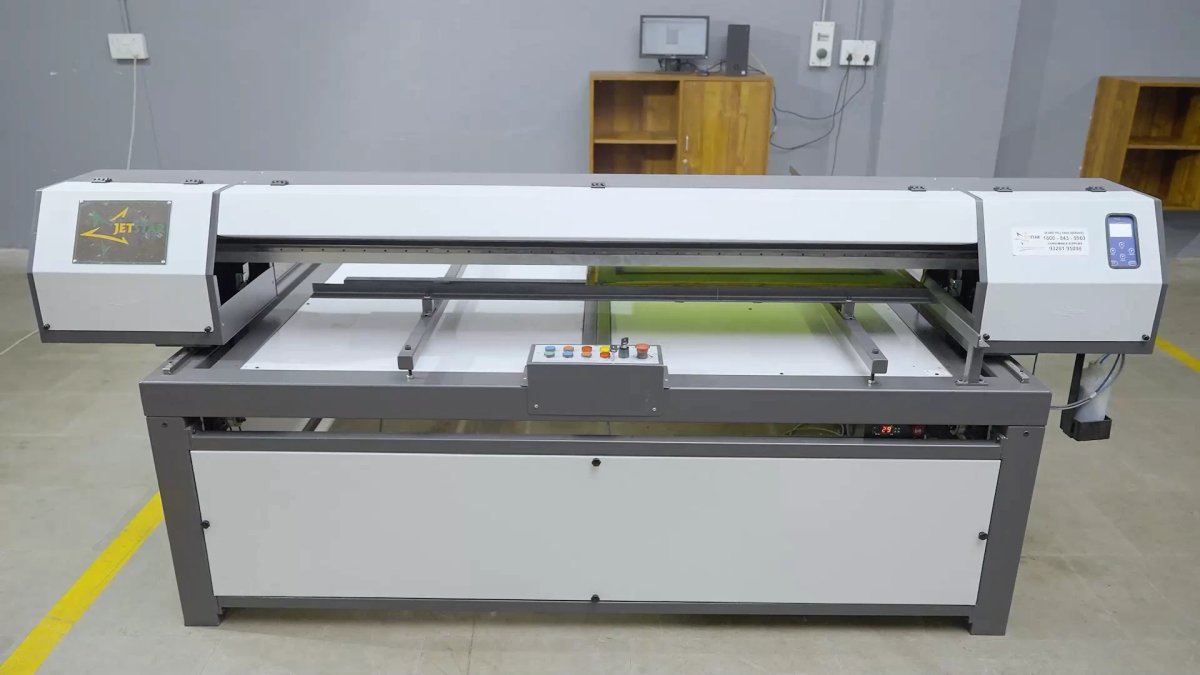

Jetstar Piezo Flatbed Screen Engraver
Inkjet-based flatbed screen engraver using Epson Piezo Electric Technology (DX5 or XP600 print head) for fine-detail work up to 1440 dpi.
- The Jetstar Piezo Flatbed Screen Engraver uses Epson's Piezo Electric Technology for high-resolution inkjet-based screen exposure. A crystal located at the back of the ink reservoir of each nozzle receives a tiny electrical charge causing it to vibrate — when it vibrates inward, it forces a tiny amount of ink out of the nozzle with extreme precision.
- Featuring a Continuous Ink Supply System with Refillable Cartridges and an Automated Print Head Cleaning Mechanism, this machine delivers consistent, high-quality results with minimal maintenance. The PC-based RIP software provides complete control over the exposure process.
24×7 Toll-Free Support1800-843-9969
Product Video
Technical Specifications
| Parameter | Specification |
|---|---|
| Imaging | |
| Print Head Technology | Epson Piezo Electric (DX5 or XP600) |
| Print Resolution | Up to 1440 dpi |
| Ink Delivery | Continuous Ink Supply System with Refillable Cartridges |
| Head Cleaning | Automated Print Head Cleaning Mechanism |
| Dimensions | |
| Maximum Print Width | 1800 mm up to 4000 mm |
| Maximum Print Length | 4000 mm |
| Connectivity | |
| Computer Interface | 10/100 Base-T (Ethernet) |
| Print Controller | PC Based RIP Software |
| Electrical | |
| Electrical Input | 220V AC ±10%, 50Hz ±1Hz |
| System | |
| Memory | 128 MB |
| Environment | |
| Operating Temperature | 18–24 °C |
| Humidity | 50–65% RH Non-Condensing |
* Specifications subject to change without notice. Contact us for the latest technical documentation.
